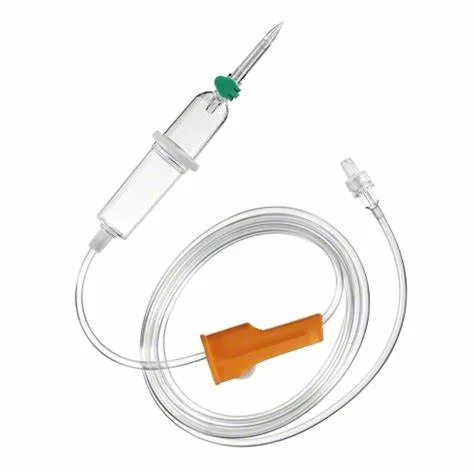

B Braun Intrafix Primeline Standard IV set

Universal IV administration sets with an air vent for gravity infusions and pressure infusions with non-dedicated infusion pumps (pressure resistant up to 2 bar)

Basic product features

• • Ergonomically designed 3-part drip chamber
  • Universal, vented piercing spike. Spiking solution container with ease and preventing contamination
  • Bacteria-tight proven air vent, closable with handy snap cap
  • Fully transparent upper part allows quick drop rate check
  • Push ring for comfortable and secure gripping. Ideal for attachment of Infusomat^® pump drip sensor
  • Extended, detached drip element provides even drop formation; 20 drops = 1ml ± 0.1 ml (aqua dist.)
  • Elastic pump chamber enables one-click fluid level setting
  • Offers a high fluid level as a guard against air entrainment
  • Large 15 µm filter, provides high flow rate and protects against larger particles
  • Advanced precise roller clamp
  • Good to control flow rate, comfortable to hold. Spike dock for secure spike discard. Housing colour “orange”
  • Screw tight Luer Lock fitting
  • To prevent accidental disconnection
  • Soft, clear PVC tubing
  • With standard lumen 3 x 4.1 mm, standard length 180 cm, DEHP free plasticizer with superior, well-documented safety properties

Options of standard add-on-devices, examples

• Needle based, air-free Eurofix^® injection site with handy safe grip plate
• Safe, needle-free injection valve SafeFlow
• Discofix^® stopcocks for needle free injection, aspiration and parallel infusion
• PrimeStop cap for automatic priming
• Infuvalve^® back check valve preventing backflow of solutions and blood
• Neutrapur^® tubing material PVC free (pressure resistant, but not pump-compatible!) – free of halogene, e.g. chlorine, free of plasticizer
• Various tubing lengths for better patient mobility and others

All design features in accordance with International Standard ISO 8534-4/8
(Infusion sets for single use, gravity feed / Infusion equipment for Pressure Infusion)
